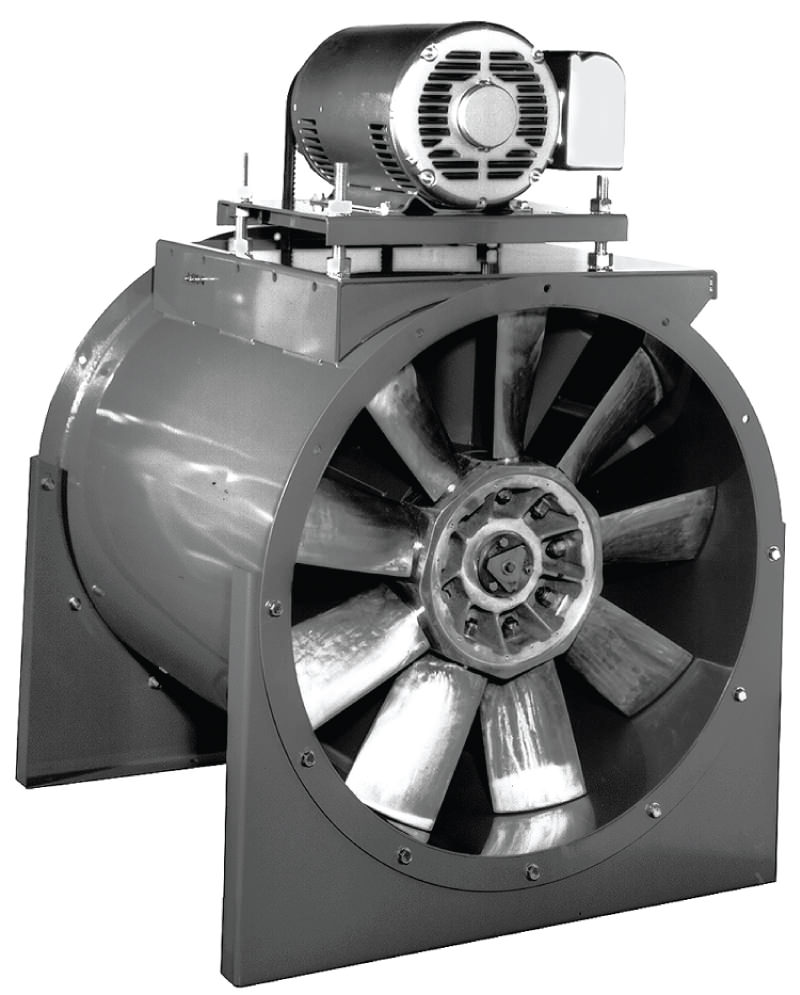

COOK adjustable pitch vane axial fans are available in direct and belt drive models offering high efficiencies and high static pressures in a space-efficient inline package. The AVA is available in sizes 35 inch through 79 inch with flow rates of 400 CFM to 213,403 CFM and static pressures up to 13 inches. The AVA features cast aluminum airfoil blades that can be pitch adjusted to achieve a broad range of performance. The AVA adjustable pitch vane axial fan is available with a full range of accessories allowing it to be adapted to many different applications.

  • High efficiency nine blade cast aluminum propeller assembly with airfoil blade design.
  • Minimum 3/16” steel housing with continuously welded seams, and integral inlet and outlet flanges pre-punched for mounting.
  • Copper lubrication lines are standard on belt drive units and also standard on direct drive units when applicable.
  • The motor plate is attached to a heavy welded sub-base and features threaded studs for positive belt tensioning.
  • Direct drive units feature a totally enclosed motor installed in a motor tunnel surrounded by welded straightening vanes.
  • Belt drive units feature an inner drum that encloses the driven sheave, shaft and bearings. The low-drag dual tunnels, separating belts from the airstream, also protect the extended lubrication lines. Removable covers provide access to the shaft, bearings and belts. All steel fan components feature a LorenizedTM powder coat finish. Bearings are designed and tested specifically for use in air handling applications. Bearings are heavy duty regreasable ball or roller type in a cast iron pillow block housing selected for a minimum L50 life in excess of 500,000 hours for horizontal units and L50 life in excess of 250,000 hours for vertical units at maximum cataloged operating speed, horsepower and static pressure.
  • Drives utilize oil and heat resistant, non-static belts and precision
    machined cast iron sheaves which are keyed and securely attached to the wheel and motor shafts. Drives are sized for 150 percent of motor horsepower.
  • Power (BHP) ratings for all belt drive fans includes drive loss to ensure
    accurates selection of the motor.
Related Documents

See the Downloads tab for specifications, submittals and FanDrafter files

See also VA
See also AF

  • AVA-D

  • AVA-B

  • Downloads

LOREN COOK COMPANY certifies that the AVA-D shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program.

Model AVA-D is furnished standard with UL 705 and CUL 705 listing (Power Ventilator) when furnished with factory supplied motor.

AVA-D

Adjustable Pitch
Vane Axial Fan
Direct Drive

Description: Fan shall be a direct drive, adjustable pitch, vane axial fan.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705). Fan shall bear the AMCA certified ratings seal for air and sound performance.

Construction: Fan shall be of bolted and welded construction utilizing corrosion resistant fasteners. Housing shall be minimum 7 gauge steel with continuously welded seam. Housing shall incorporate minimum 2” x 2” x 1/4” welded inlet and outlet flanges pre-punched for mounting. Housing shall include welded steel discharge vanes surrounding a “C” face mount motor tunnel. Copper lube lines shall be extended from motor bearings to the outside of the housing when applicable. Unit shall bear an engraved aluminum nameplate.

Coating: All steel fan components shall be LorenizedTM with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Propeller: Propeller shall be an adjustable pitch, cast aluminum, 9 blade airfoil design, factory set to required pitch. Individual blades shall be cast with a threaded fastener and feature a conical section to secure the blade to the cast aluminum hub and to provide provision for pitch adjustment. The propeller hub shall be keyed and locked to the shaft utilizing a split taper bushing and retaining plate. Propeller shall be balanced in accordance with AMCA Standard 204-05 , Balance Quality and Vibration Levels for Fans, Category BV-3.

Motor: Motor shall be heavy duty type furnished at the specified voltage and phase.

Product: Fan shall be model AVA-D as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches) not available

LOREN COOK COMPANY certifies that the AVA-B shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program.

Model AVA-B is furnished standard with UL 705 and CUL 705 listing (Power Ventilator) when furnished with factory supplied motor.

AVA-B

Adjustable Pitch
Vane Axial Fan
Belt Drive

Description: Fan shall be a belt drive, adjustable pitch, vane axial fan.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705). Fan shall bear the AMCA certified ratings seal for air and sound performance.

Construction: Fan shall be of bolted and welded construction utilizing corrosion resistant fasteners. Housing shall be minimum 3/16” steel with continuously welded seam. Housing shall incorporate minimum 2” x 2” x 1/4” continuously welded inlet and outlet flanges pre-punched for mounting. Housing shall include welded steel discharge vanes and aerodynamically designed dual belt tunnels. Copper lube lines shall be extended from the bearings to the outside of the housing. Adjustable motor plate shall be attached to a welded motor sub-base and shall utilize threaded studs for positive belt tensioning. Unit shall bear an engraved aluminum nameplate.

Coating: All steel fan components shall be LorenizedTM with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Propeller: Propeller shall be an adjustable pitch, cast aluminum, 9 blade airfoil design, factory set to required pitch. Individual blades shall be cast with a threaded fastener and feature a conical section to secure the blade to the cast aluminum hub and to provide provision for pitch adjustment. The propeller shall be keyed and locked to the shaft utilizing a split taper bushing and retaining plate. Propeller shall be balanced in accordance with AMCA Standard 204-05 Balance Quality and Vibration Levels for Fans, Category BV-3.

Motor: Motor shall be heavy duty type furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be designed and tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball or roller type in a cast iron pillow block housing selected for a minimum L50 life in excess of 500,000 hours for horizontal units, and L50 life in excess of 250,000 hours for vertical units at maximum cataloged operating speed.

Blower Shaft: Blower shaft shall be AISI C-1045 hot rolled and accurately turned, ground and polished. Shafting shall be sized for a critical speed of at least 125 percent of maximum RPM.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron, fixed pitch type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150 percent of the installed motor horsepower.

Product: Fan shall be model AVA-B as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches) not available
