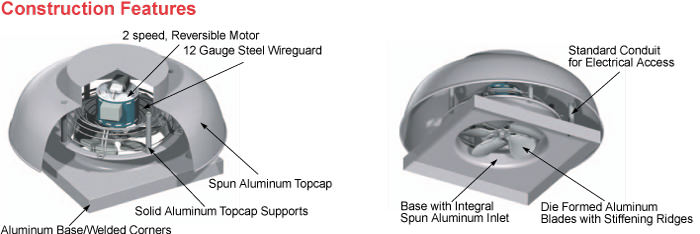

Standard Construction Features

Standard Construction Features

ISO, AMCA, UL, high w ind, and seismic certification logos

ISO, AMCA, UL -by model

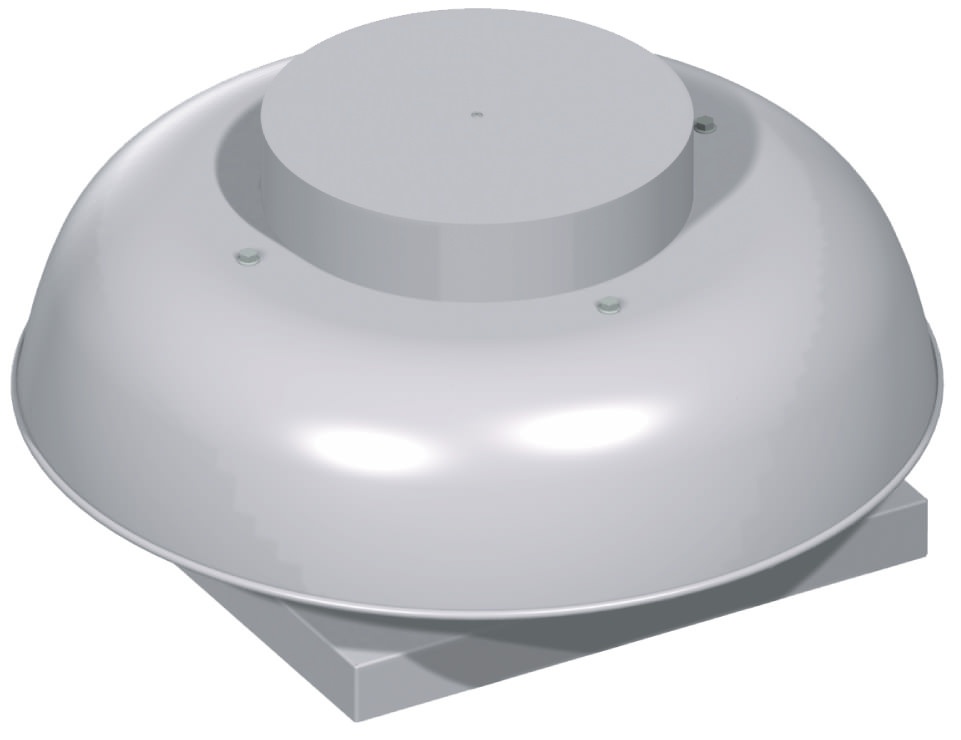

The REBEL direct drive propeller roof fans are available in 4 fan sizes with propeller diameters ranging from 12 inches to 24 inches. The REBEL provides maximum performance, durability, economy, and flexibility in a wide range of supply (REBS) and exhaust (REBE) air moving applications. The REBS capacity ranges from 400 CFM up to 5600 CFM, with static pressures from 0 to 5/8 inches wg. The REBE capacity ranges from 150 CFM up to 5800 CFM, with static pressures from 0 to 1 inch wg.

  • Can be reconfigured in the field from supply to exhaust and vice versa.
  • One piece stamped aluminum propeller with press fit plated steel hub (size 12); stamped aluminum propeller blades riveted to a plated steel hub (sizes 16-24) .
  • Hub securely fastened to the motor shaft utilizing setscrews.
  • Motors are reversible, 2 speed.
Related Documents

See the Downloads tab for specifications, submittals and FanDrafter files

See also ASP

  • REBE / REBS

  • Downloads

LOREN COOK COMPANY certifies that the REBEL shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program.

Type REBEL is furnished standard with UL 705 and cUL 705 listings (Power Ventilator/ZACT).

REBE / REBS

Propeller Exhaust /
Supply/Reversible

  • Impeller: 12 - 24 in
  • Flow: 200 - 5800 CFM
  • SP: 0 - 1 in

Description: Fan shall be a roof mounted, direct drive, aluminum propeller exhaust or supply ventilator with spun aluminum top cap.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705). Fan shall bear the AMCA Certified Ratings Seal for Air Performance.

Construction: Fan shall be of bolted and welded construction utilizing corrosion resistant fasteners. The spun aluminum structural components shall be constructed of minimum 16 gauge marine alloy aluminum, bolted to a rigid aluminum support structure. The aluminum base shall have continuously welded curb cap corners for maximum leak protection. The motor shall be mounted on a 12 gauge steel wire guard. Unit shall bear an engraved aluminum nameplate and shall be shipped in ISTA Certified Transit Tested Packaging.

Propeller: Propeller shall have aluminum blades and a plated steel hub. The hub shall be securely fastened to the motor shaft utilizing setscrews. Propeller shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be 115/1/60, open drip proof type with permanently lubricated sealed bearings.

Product: Fan shall be model REBEL as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)
bottom dimension drawing

Size A B C G T-Sq. Roof Opening Square
for curbs supplied by LOREN COOK COMPANY only.
12 14-9/16 5-1/8 28-1/4 2 20 15-1/2
16 16 6-1/8 33-1/4 2 28 23-1/2
20 18-3/8 7-1/8 43-1/4 2 32 27-1/2
24 21-5/8 9-1/8 47-1/4 3 36 31-1/2
