SQN: Square Inline Fans with Multi-Directional Discharge

  • SQN-D
  • SQN-B
  • Standard Construction Features
  • ISO 9001, US-Green, AMCA Sound & Air, CSA, US-C-UL, and Seismic Logos

Direct Drive

SQN-B

Belt Drive

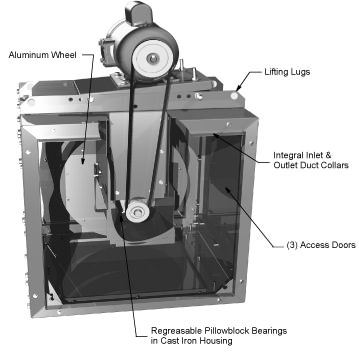

SQN -Standard Construction Features

Construction Feature

ISO 9001, US-Green, AMCA Sound & Air, CSA, US-C-UL, and Seismic Logos

Certifications, vary by model

COOK's SQN - Square Inline Fan - is the most versatile fan in the industry. The SQN has the shortest depth of any available square inline fan.

  • Standard universal mounting feet allows the customer to have total control of the fan's installation without the need to purchase any mounting accessories.
  • Three access doors allow total access to the fans internal components in any vertical or horizontal mounting installation.

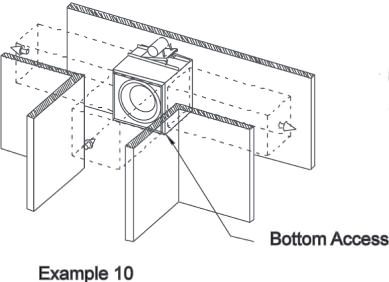

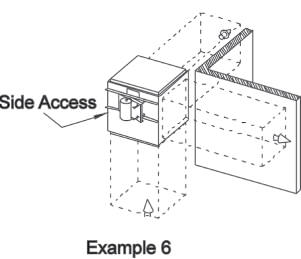

  • By utilizing the side discharge options, installation costs, pressure loss, system effect and space requirements are reduced.
  • Electronially communtated motors available
Related Documents

See the Downloads tab for Specifications, Submittals, and FanDrafter files

See also SQI

  • SQN-D

  • SQN-B

  • SQN-HP

  • Options & Accessories

  • Installation

  • Downloads

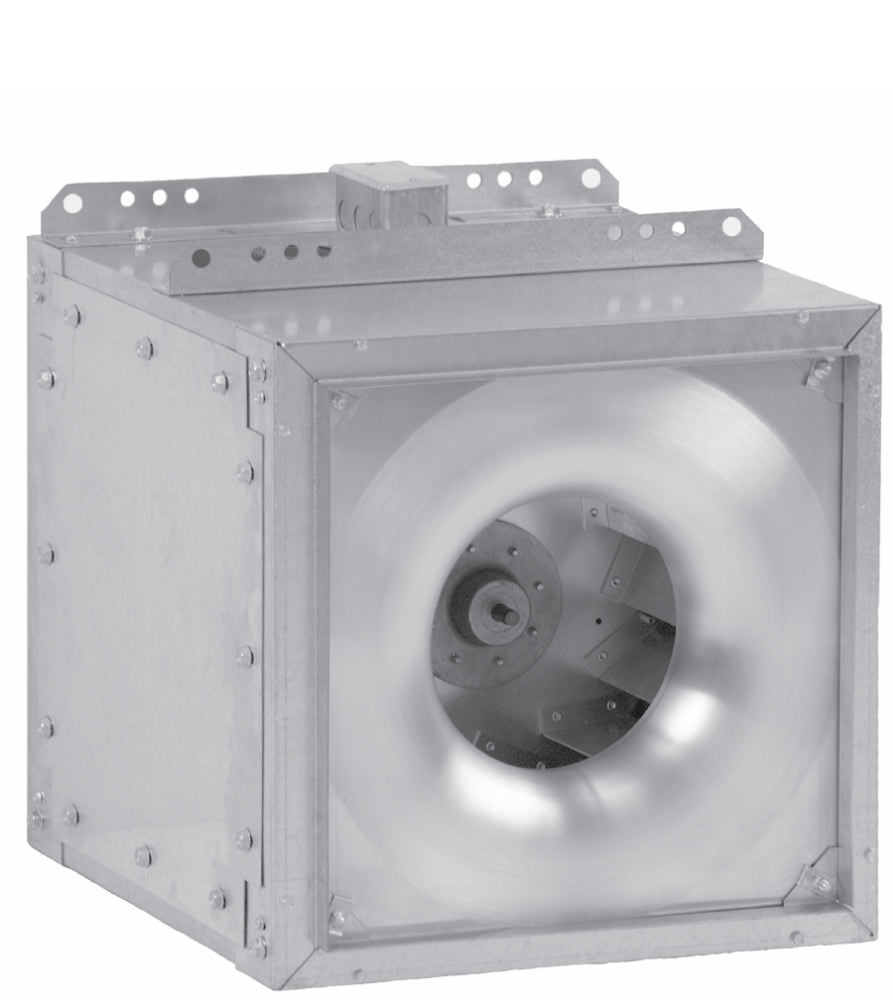

SQN-D


LOREN COOK COMPANY certifies that the SQN-D shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type SQN-D is furnished standard with UL 705 & cUL 705 listing (Power Ventilator/ZACT) when furnished with factory supplied motor.


All sizes are available with express service (except EC). Read more.

SQN Direct Drive

Square Centrifugal
Inline Blower
Direct Drive
  • SQN is available in 7 direct drive sizes.
  • Impeller Size: 7 - 16.5 in
  • Flow:100 - 4,380 CFM
  • SP: 0 - 2 in

Description: Fan shall be duct mounted, direct driven centrifugal square inline.

Certifications: Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (CSA Standard 113 - M1984). Fan shall bear the AMCA Certified Ratings Seal for Sound and Air Performance.

Construction: The fan shall be of bolted construction utilizing corrosion resistant fasteners. Housing shall be minimum 18 gauge galvanized steel with integral duct collars. Bolted access doors shall be provided on three sides, sealed with closed cell neoprene gasketing. Housing shall be pre-drilled to accommodate universal mounting feet for vertical or horizontal installation. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM and static pressure. Unit shall be shipped in ISTA Certified Transit Tested Packaging.

Wheel: Wheel shall be centrifugal backward inclined, constructed of 100 percent aluminum, including a precision machined cast aluminum hub. An aerodynamic aluminum inlet cone shall be provided for maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be NEMA design B with a minimum of class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Motor (EC): Motor shall be an electronically commutated motor rated for continuous duty and furnished either with internally mounted potentiometer speed controllor with leads for connection to 0-10 VDC external controller.

Product: Fan shall be model SQN-D or SQND-EC as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches) sqn-d dimension drawing
Size A B C D Sq. E Inlet and Rear Discharge Duct Size (ID) Optional Side Discharge Duct Size (WxH) (ID) Approx. Ship Wt.*
70 10 12 14 12 13-9/16 10 sq. 6-1/8 x 6-15/16  70
90 12 15 17 14 15-9/16 12 sq. 9-1/8 x 8-15/16 90
100 12 20 22 14 15-9/16 12 sq. 14-1/8 x 8-15/16 100
120 16 20 22 18-7/16 20 16 sq. 14-1/8 x 12-9/16 125
135 18 20-1/4 22-1/4 20-3/4 22-5/16 18 sq. 14-1/4 x 13-1/8  150
150 20 21-7/8 23-7/8 23 25-1/16 20 sq. 15-15/16 x 16-1/8  175
165 22 25 27 25-5/16 27-3/8 22 sq. 19-1/8 x 18-1/8 200

SQN-B


LOREN COOK COMPANY certifies that the SQN-B shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type SQN-B is furnished standard with UL 705 & cUL 705 listing (Power Ventilator/ZACT) when furnished with factory supplied motor.


All sizes are available with express service. Read more.

SQN Belt Drive

Square Centrifugal
Inline Blower
Belt Drive

  • SQN is available in 18 belt drive sizes.
  • Impeller Size: 10 - 40.25
  • Flow: 50 - 27,000 CFM
  • SP:0.125 - 3.5 in

Description: Fan shall be duct mounted, belt driven centrifugal square inline.

Certifications: Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (CSA Standard 113 - M1984). Fan shall bear the AMCA Certified Ratings Seal for Sound and Air Performance.

Construction: The fan shall be of bolted construction utilizing corrosion resistant fasteners. Housing shall be minimum 18 gauge galvanized steel with integral duct collars. Bolted access doors shall be provided on three sides, sealed with closed cell neoprene gasketing. Pivoting motor plate shall utilize threaded L-bolt design for positive belt tensioning. Housing shall be pre-drilled to accommodate universal mounting feet for vertical or horizontal installation. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM, static pressure and maximum fan RPM. Unit shall be shipped in ISTA Certified Transit Tested Packaging.

Wheel: Wheel shall be centrifugal backward inclined, constructed of 100% aluminum, including a precision machined cast aluminum hub. Wheel inlet shall overlap an aerodynamic aluminum inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be NEMA design B with class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be designed and individually tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball type in a pillowblock cast iron housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150 percent of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be model SQN-B as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches) sqi-b dimension drawing

Size A B C D Sq. E Inlet and Rear Discharge Duct Size (ID) Optional Side Discharge Duct Size (WxH) (ID) Max. Mtr. Frame Size Approx. Ship Wt.*
60 12 20 22 14 12-1/2 12 sq. 14-1/8 x 8-15/16  143T 80
70 12 20 22 14 12-1/2 12 sq. 14-1/8 x 8-15/16  143T 80
80 12 20 22 14 12-1/2 12 sq. 14-1/8 x 8-15/16  143T 80
100 12 20 22 14 12-1/2 12 sq. 14-1/8 x 8-15/16  143T 80
120 16 20 22 18-7/16 12-1/2 16 sq. 14-1/8 x 12-9/16  145T 100
135 18 20-1/4 22-1/4 20-3/4 12-1/2 18 sq. 14-1/4 x 13-1/8  145T 125
150 20 21-7/8 23-7/8 23 12-3/4 20 sq. 15-15/16 x 16-1/8  145T 150
165 22 25 27 25-5/16 14-3/4 22 sq. 19-1/8 x 18-1/8  182T 175
180 24 28 30 27-5/8 14-3/4 24 sq. 21 x 20-1/8  182T 200
195 26 30-1/4 32-1/4 29-15/16 15 26 sq. 23-1/4 x 22-1/8  182T 225
210 28 32 35 31-1/4 15 28 sq. 24-1/2 x 24-1/8  182T 250
225 30 34-1/4 37-1/4 33-1/2 15-1/4 30 sq. 26-3/4 x 26-1/8 184T 300
245 33 34 38 36 17-1/4 33 sq. 26-1/16 x 29-1/8  213T 350
270 36-7/16 37-1/2 41-1/2 39-11/16 17-1/4 36-7/16 sq. 29-11/16 x 32-1/2  213T 400
300 40 38 42 44 17-1/4 40 sq. 30-1/8 x 36-1/8  213T 450
330 44 41-3/4 45-3/4 48-7/16 17-1/4 44 sq. 31-3/16 x 40-1/8  215T 500
365 46 42 46 50 17-1/4 46 sq. 32-3/16 x 42-1/16  215T 550
402 50-3/4 46-1/4 50-1/4 55-1/8 17-1/4 50-3/4 sq. 36-5/16 x 46-15/16  215T 650

SQI-HP


LOREN COOK COMPANY certifies that the SQN-HP shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type SQN-HP is furnished standard with UL 705 & cUL 705 listing (Power Ventilator/ZACT) when furnished with factory supplied motor.


All sizes are available with express service. Read more.

SQN High pressure

Square Centrifugal
High Pressure
Inline Blower
Belt Drive

  • SQI-HP is available in 13 belt drive sizes.
  • Impeller Size: 13.5 - 40.2 in
  • Flow: 500 - 17,100 CFM
  • SP: .125 - 4.5 in

Description: Fan shall be duct mounted, belt driven, high pressure centrifugal square inline.

Certifications: Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (CSA Standard 113 - M1984). Fan shall bear the AMCA Certified Ratings Seal for Sound and Air Performance.

Construction: The fan shall be of bolted construction utilizing corrosion resistant fasteners. Housing shall be minimum 18 gauge galvanized steel with integral duct collars. Bolted access doors shall be provided on three sides, sealed with closed cell neoprene gasketing. Pivoting motor plate shall utilize threaded L-bolt design for positive belt tensioning. Housing shall be pre-drilled to accommodate universal mounting feet for vertical or horizontal installation. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM, static pressure and maximum fan RPM. Unit shall be shipped in ISTA Certified Transit Tested Packaging.

Wheel: Wheel shall be high pressure centrifugal backward inclined, constructed of 100% aluminum, including a precision machined cast aluminum hub. Wheel inlet shall overlap an aerodynamic aluminum inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be Nema design B with class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be designed and individually tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball type in a pillowblock cast iron housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150 percent of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be model SQN-HP as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches) Sqn-d dimension drawing

Size A B C D Sq. E Inlet and Rear Discharge Duct Size (ID) Optional Side Discharge Duct Size (WxH) (ID) Max. Mtr. Frame Size Approx. Ship Wt.*
135 18 20-1/4 22-1/4 20-3/4 12-1/2 18 sq. 14-1/4 x 13-1/8  145T 125
150 20 21-7/8 23-7/8 23 12-3/4 20 sq. 15-15/16 x 16-1/8  145T 150
165 22 25 27 25-5/16 14-3/4 22 sq. 19-1/8 x 18-1/8  182T 175
180 24 28 30 27-5/8 14-3/4 24 sq. 21 x 20-1/8  182T 200
195 26 30-1/4 32-1/4 29-15/16 15 26 sq. 23-1/4 x 22-1/8  182T 225
210 28 32 35 31-1/4 15 28 sq. 24-1/2 x 24-1/8  182T 250
225 30 34-1/4 37-1/4 33-1/2 15-1/4 30 sq. 26-3/4 x 26-1/8  184T 300
245 33 34 38 36 17-1/4 33 sq. 26-1/16 x 29-1/8  213T 350
270 36-7/16 37-1/2 41-1/2 39-11/16 17-1/4 36-7/16 sq. 29-11/16 x 32-1/2  213T 400
300 40 38 42 44 17-1/4 40 sq. 30-1/8 x 36-1/8  213T 450
330 44 41-3/4 45-3/4 48-7/16 17-1/4 44 sq. 31-13/16 x 40-1/8  215T 500
365 46 42 46 50 17-1/4 46 sq. 32-3/16 x 42-1/16  215T 550
402 50-3/4 46-1/4 50-1/4 55-1/8 17-1/4 50-3/4 sq. 36-5/16 x 46-15/16  254T 650

Performance shown is for Installation Type B: Free inlet, Ducted outlet. Speed (RPM) shown is nominal. Performance is based on actual speed of test. Performance ratings do not include the effects of appurtenances in the airstream. *These fans cannot be used with FSC speed controller.

Accessories

Motors

Direct Drive: All direct drive motors are standard single phase 115-volt.

  • Sizes 70 through 100 are either shaded pole or permanent split capacitor type motors.
  • Sizes 120 through 165 are either permanent split capacitor (10750 RPM motors) or split phase (1725 RPM motors).
  • FSC can only be used on either shaded pole or permanent split capacitor type motors.

Optional motors:

  • Two speed, single-phase open motors supplied as 1725 RPM motors are 1725/1140.
  • Explosion proof motors are available for some units, contact factory for details.
  • These optional motors cannot use an FSC.

EC Motors

Electronically Commutated (EC) Motors offer significantly improved energy efficiency and controllability over traditional fractional HP motors. The EC motor is offered in 1/4, 1/2 and 3/4 HP sizes for 120v, single phase applications and has an adjustable speed range of 500 to 1725 rpm. Two control options are available for each motor. The "Motor Mounted Speed Control" version includes an integral potentiometer mounted on the exterior of the motor for adjusting the motor speed. A screwdriver is used for adjustment. The "External Signal Speed Control" version requires a 0-10 VDC control signal to adjust the speed of the motor as well as a 24 VAC power source to operate the motor control circuit (a 24v transformer is included with the fan to power the motor control circuit). The motor will operate from 2-10 VDC and will turn off below when the control signal is below 1.9 VDC

Belt Drive

Single-phase motors:

  • Open drip motors from 1/6 to 1-1/2 HP.
  • Two-speed, motors in 1725/1140 RPM, from 1/6 to 1 HP.
  • TEFC and Class 1, Group D, explosion proof motors from 1/4 to 1 HP.
  • Three-phase motors:
  • Three-phase ODP motors from 1/4 to 15 HP.
  • Two-speed, two winding motors in 1725/1140 RPM, from 1/3 to 5 HP.
  • TEFC and Class 1, Group D, explosion proof motors from 1/4 to 10 HP.
  • Variable Frequency Drive (VFD) compatible motors are available, contact factory for details.

All single-phase and three-phase, single speed, open drip motors listed in performance tables are shipped factory installed.


sqn universalUniversal Mounting: The SQN is provided with universal mounting feet for installation in any horizontal or vertical position. These feet are shipped loose for field installation in the desired location. The mounting feet are attached utilizing existing bolts in the fan. See the adjacent drawings for typical positions and dimensions.

SQN-D
Size A B C
70 9-15/16 15-11/16 9-15/16 15
90 12-15/16 17-11/16 11-15/16 17
100 17-15/16 17-11/16 11-15/16 17
120 17-15/16 22-1/8 16-3/8 21-7/16
135 18-1/8 24-3/8 18-5/8 23-3/4
150 19-3/4 26-1/16 20-15/16 25-3/4
165 22-15/16 28-3/8 23-1/4 28-1/16

SQN-B

Size A B C
60 17-15/16 17-11/16 11/15/2016 17
70 17-15/16 17-11/16 11/15/2016 17
80 17-15/16 17-11/16 11/15/2016 17
100 17-15/16 17-11/16 11/15/2016 17
120 17-15/16 22-1/8 16-3/8 21-7/16
135 18-1/8 24-3/8 18-5/8 23-3/4
150 19-3/4 26-1/16 20-15/16 25-3/4
165 22-15/16 28-3/8 23-1/4 28-1/16
180 25-7/8 30-5/8 25-1/2 30-3/8
195 28-1/8 33-1/16 27-15/16 32-11/16
210 29-7/8 35 29-1/4 34
225 32-1/8 36-5/8 31-1/2 36-1/4
245 30-3/8 41 32-3/4 40-3/8
270 33-7/8 44-11/16 36-7/16 44-1/16
300 34-3/8 49 40-3/4 48-3/8
330 38-1/8 53-1/8 45-1/8 52-13/16
365 38-3/8 55 46-3/4 54-3/8
402 42-5/8 60-1/8 51-7/8 59-1/2


fan speed controlFan Speed Control: COOK's FSC is a variable speed controller which can offer excellent energy conservation and lower sound levels when 100 percent of a direct drive fan operating capacity is not required. The FSC employs solid state circuitry for long life and dependability. The FSC is available only on 115V and 230V shaded pole or permanent split capacitor direct drive motors and is not available on 1140 RPM and 1725 RPM motors. The FSC is normally shipped loose for field installation. Optional pre-wiring is available.


Fan speed control Electronically commutaedFan Speed Control for EC Motors: External Speed Control for the Cook EC Motor allows the fan speed to be adjusted remotely via an easy to read dial. The controller allows for adjustment from 20-100% of the fan speed. The controller works with the external signal version of the Cook EC Motor and requires 24 VAC power for operation.


Fan speed control PressurePressure control for EC Motors:Constant pressure controller for the Cook EC Motor is for applications where the fan is intended to maintain a near constant pressure in a system such as dryer vents. The pressure controller reads the pressure in a duct system via the provided pressure transducer and automatically adjusts the fan rpm to maintain a preset value. The controller works with the external signal version of the Cook EC Motor and is shipped loose for field installation.


Optional Coatings

Lorenized® is an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Coating must exceed 1,000 hour salt spray under ASTM B117 test method.

COOK Epoxy Powder is an electrostatically applied, baked epoxy powder coating. Final coating thickness is 2.5 - 3.5 mils. For outdoor applications an optional UV resistant topcoat is available to prevent cosmetic chalking of the coating.

COOK Phenolic Epoxy Powder is an electrostatically applied, baked phenolic epoxy powder coating. Final coating thickness is 2 - 4 mils. For outdoor applications an optional UV resistant topcoat is required to prevent deterioration of the coating.

Cook Easy Clean Powder is an electrostatically applied, baked modified epoxy silicone powder producing a high temperature "non-stick" coating. Final coating thickness is 1.3 - 1.7 mils.

Air Dry Phenolic (Heresite VR-504) is a conventional spray applied phenolic resin coating. Final coating thickness is 4 - 6 mils. For outdoor applications an optional UV resistant topcoat (Heresite UC-5500) is required to prevent deterioration of the coating.

Refer to the corrosion resistance guide in the Compute-A-Fan software for a listing of the coatings above and their resistance to a variety of chemicals. Additional special coatings are available.

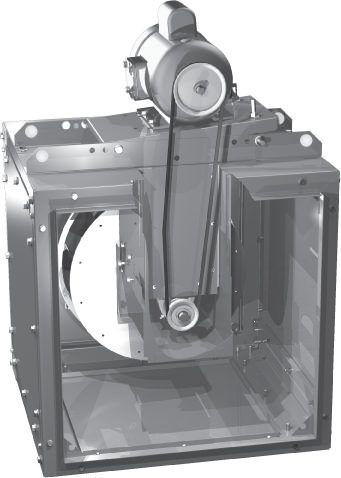

Belt TensionerBelt Tensioner: COOK's automatic belt tensioner eliminates the need for regular manual retensioning of fan belts. The risk of inadvertantly over-tensioning drive components is avoided and overall drive operating efficiency is enhanced. Available on sizes 120-402 to maintain proper belt tension.


Motor CoverMotor Cover: The motor cover completely encloses the motor and drive assembly and also serves as an OSHA belt guard. The motor cover is constructed of 18 gauge galvanized steel and is intended for indoor use only. Motor covers are factory installed.


Belt Guard: Belt guards are available which cover the drive assembly on the top, front and sides. The belt guard is constructed of minimum 18 gauge galvanized steel and has an open back which allows inspection and belt tensioning without removing the guard. Belt guards are factory installed.


Outlet Safety ScreenOutlet Safety Screen: Outlet safety screens are used on non-ducted installations to protect personnel and prevent debris from entering the fan. This screen is constructed of 16 gauge 1/2" x 1" expanded metal complete with mounting frame. This assembly is Lorenized® and factory installed.


Inlet Safety ScreenInlet Safety Screen: Inlet safety screens are used in non-ducted installations to protect personnel and prevent debris from entering the fan. This screen is constructed of 1/2" x 1/2" galvanized welded wire and is factory installed.


Filter Box Filter Box: A Filter Box is available which attaches to the inlet side of the SQN. This filter box is constructed of minimum 18 gauge galvanized steel and incorporates a removable access panel, washable slide-out filters and integral duct collars. Disposable filters are also available.


Flex Duct Connector: Flex Duct Connectors are available for the inlet or outlet of the SQN. These connectors provide a flexible connection between the fan and the attached ductwork. This reduces the transmission of noise and vibration to the ductwork as well as allowing for slight misalignment and easy removal of the fan without disturbing the rigid ductwork. Flex Duct Connectors consist of reinforced neoprene fabric and aluminum bands.


Inlet/Outlet Companion FlangeInlet/Outlet Companion Flange: Inlet or Outlet Companion Flanges are available for use in conjunction with the optional Flanged Inlet or Outlet. The companion flange is attached to the adjacent ductwork to provide an exact mate to the flanged connection on the fan.


Flanged Inlet/OutletFlanged Inlet/Outlet: Flanged Inlet or Outlet connections are available which allow for flange type duct attachment in place of the standard slip connection. This type of connection allows the fan to be removed without disturbing the surrounding ductwork. Flanges are constructed of 1-1/2"x1-1/2"x1/8" structural angle and are factory mounted.

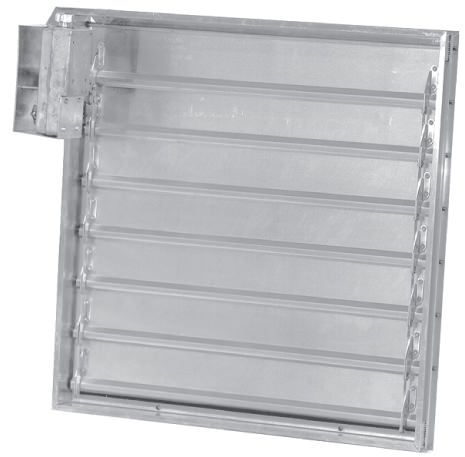

Backdraft DampersBackdraft Dampers: Backdraft dampers are available in gravity operated or motorized configurations for in-duct installation. These dampers feature an extruded aluminum frame, aluminum blades and aluminum hinge pins with nylon bushings. These dampers are shipped loose for field installation.


External Inlet Vane DamperExternal Inlet Vane Damper: External Inlet Vane Dampers are used to provide precise air volume control while maintaining maximum efficiency and stable operation at reduced load conditions. Inlet Vane Dampers are available in aluminum or steel construction on sizes 135 through 402. These dampers are factory mounted and provided with an adjustment arm for manual or actuated control (actuator furnished by others). Cataloged performance is based on fans without inlet vane dampers.


Disconnect SwitchesDisconnect Switches:

NEMA 1 - Indoor general purpose.
NEMA 1 (Lockable) - Indoor general purpose with locking capability.
NEMA 4 - Watertight and dust-tight.
NEMA 7 and NEMA 9 - Lockable, indoor, explosion proof.



Vibration IsolatorsVibration Isolators: Vibration isolation is recommended to reduce vibration and noise transmission to the floor or support structure. Isolators are available in both spring type and RIS (rubber-in-shear) type for floor or ceiling mounting. Housed spring floor isolators are also available where lateral movement must be limited. All isolators are shipped loose for field installation.


Insulated Housing: An acoustical lining is available for the interior of the SQN. This fiberglass duct liner provides a reduction in noise of approximately 3dB in each of the eight octave bands.>


Aluminum Construction: All aluminum construction is available on all sizes of SQN's.

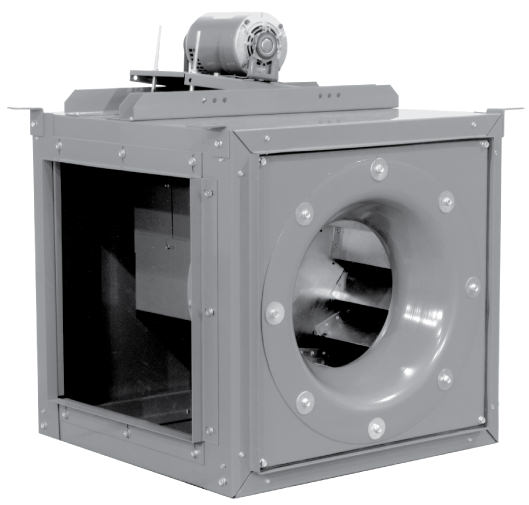

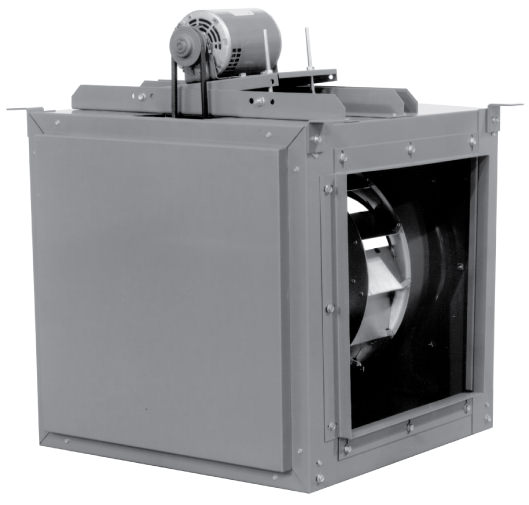

sqnsqnSingle Side Discharge Package: The Single Side Discharge Package consists of a side duct connection collar and a rear discharge block-off panel. This configuration allows air to exit from any one of the non-motor sides of the unit and provides tremendous versatility in installation. The rear discharge block-off panel is shipped installed on the unit and the side duct connection collar is shipped loose for field installation in place of any one of the three access doors utilizing existing bolts in the fan. The tables below indicate the percent change in performance when using the side discharge option. See the following page for some examples of typical installations.

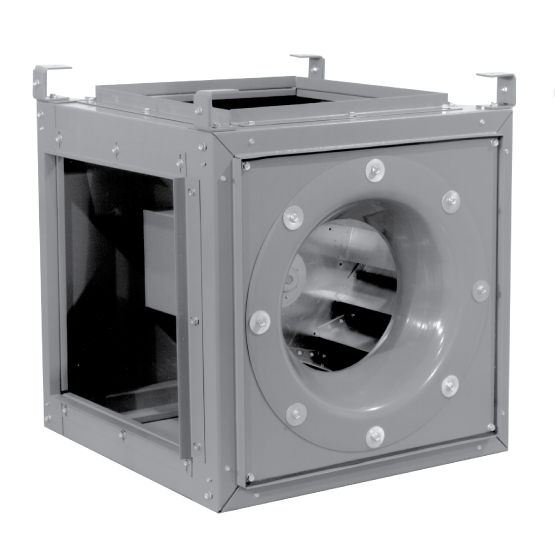

sqnsqnDual Side Discharge Package: The Dual Side Discharge Package is identical to the Single Side Discharge Package with the exception that two sets of duct connection collars are provided.

SQN Side Discharge Correction Factors

Size SQN-B SQN-HP
Single Dual Single Dual
CFM HP CFM HP CFM HP CFM HP
60 3% 3% 3% -3% -3% 5% 0% -2%
70 2% 2% 3% -3% -3% 5% 0% -2%
80 2% 2% 3% -4% -3% 5% 0% -3%
100 1% 2% 3% -5% -3% 5% 0% -3%
120 1% 1% 4% -6% -2% 4% 1% -4%
135 1% 1% 4% -7% -2% 4% 1% -4%
150 1% 1% 4% -9% -1% 2% 1% -4%
165 0% 0% 4% -10% 0% 0% 1% -5%
180 0% 0% 5% -12% 1% 0% 2% -6%
195 1% 0% 5% -12% 1% 0% 2% -6%
210 1% -1% 5% -12% 1% 0% 2% -6%
225 2% -1% 6% -12% 1% 1% 3% -7%
245 2% -2% 6% -12% 1% 1% 3% -7%
270 2% -2% 6% -13% 1% 1% 3% -7%
300 3% -2% 7% -13% 2% 2% 4% -8%
330 3% -2% 7% -13% 2% 2% 4% -8%
365 3% -3% 7% -13% 2% 2% 4% -8%
402 3% -3% 7% -13% 2% 2% 4% -8%

Size SQN-D
Single Dual
CFM HP CFM HP
70 -5% 4% 8% 6%
90 -4% 3% 8% 5%
100 -4% 3% 8% 4%
120 -3% 2% 9% 3%
135 -2% 1% 9% 2%
150 -2% 1% 9% 1%
165 -1% 0% 10% 0%
