LOREN COOK COMPANY’s Tubular Centrifugal Inline fans are available in direct drive sizes from 60 to 165, and belt drive sizes from 60 to 490 in both standard and heavy duty construction. TCN performance ranges from 50 CFM to 52,000 CFM and static pressures up to 5 inches. With a full range of mounting options and accessories, the TCN is an effective alternative for round duct installations requiring high flow rates at low to moderate static pressures.
  • Integral inlet and outlet flanges are provided for easy duct connection.
  • A large access door is standard on direct drive models. This large access door allows for removal of the motor and the wheel without removing the fan from the ductwork.
  • An inspection door is standard on belt drive models. It is oriented 180o from the motor providing access to the fan for cleaning and inspection.
  • On belt drive models, the optional access door allows removal of the bearings, shaft, and wheel for cleaning and maintenance without removing the fan from the ductwork.
  • Bearings and drives are isolated from the airstream. Removable bearing and drive covers provide easy access for inspection and service.
  • Extended lubrication lines are standard on belt drive units for ease in bearing maintenance.
Related Documents

See the Downloads tab for specifications, submittals and FanDrafter files

See also QMX
See also Lab Exhausts

  • TCN-D

  • TCN-B

  • Downloads

AC

LOREN COOK COMPANY certifies that the TCN-D shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type TCN-D is furnished standard with UL 705 and cUL 705 listings (Power Ventilator/ZACT).

TCN-D

Tubular Centrifugal
Inline Fan
Direct Drive

Description: Fan shall be duct mounted, direct drive tubular centrifugal inline.

Certifications: Fan shall be listed by Underwriters Laboratories (UL 705 and UL listed for Canada, cUL 705). Fan shall bear the AMCA Certified Ratings Seal for Sound and Air Performance.

Construction: Fan shall be of welded and bolted construction utilizing corrosion resistant fasteners. Housing shall be minimum 12 gauge Lorenized® steel with integral inlet and outlet flanges. The fan housing shall include an access door that provides unrestricted access to the motor and wheel. Mounting brackets shall be welded to the outer housing to accommodate universal mounting feet for vertical or horizontal installation. Unit shall bear an engraved aluminum nameplate and shall be shipped in ISTA Certified Transit Tested Packaging.

Wheel: Wheel shall be centrifugal backward inclined, non-overloading flatblade type. Wheel shall be constructed of 100 percent aluminum, including a precision machined cast aluminum hub. Wheel hub shall be keyed and securely attached to the fan shaft. Wheel inlet shall overlap an aerodynamically efficient aluminum inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Coating: All steel fan components shall be Lorenized® with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Motor: Motor shall be heavy duty type TEFC motor with permanently lubricated sealed ball bearings and furnished at the specified voltage, phase and enclosure.

Product: Fan shall be model TCN-D as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)

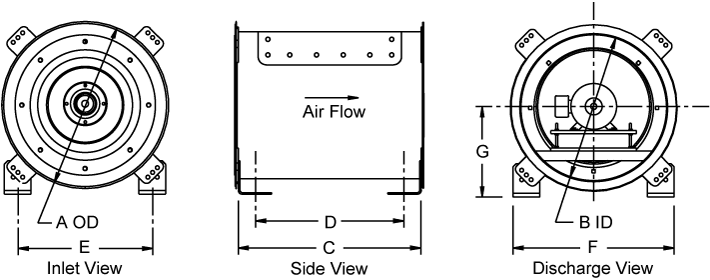

Dimension-drawing

Size A B C E F G Max. Motor Frame Approx. Ship Wt.-Lbs.*
60 19 16 22 18-3/8 14-7/8 17-7/8 10-7/8 145T 87
70 19 16 22 18-3/8 14-7/8 17-7/8 10-7/8 145T 87
80 19 16 22 18-3/8 14-7/8 17-7/8 10-7/8 145T 87
100 19 16 22 18-3/8 14-7/8 17-7/8 10-7/8 145T 87
120 21 18 23 19-3/8 16-1/4 19-1/4 10-7/8 184T 120
135 24 21 24-1/2 19-7/8 18-3/8 21-3/8 13-1/16 184T 148
150 27 24 27 22-1/2 20-1/2 23-1/2 14-1/2 215T 186
165 29 26 28-1/2 23 23 27 15-3/4 215T 210
AC

LOREN COOK COMPANY certifies that the TCNH-B shown herein are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type TCNH-B is furnished standard with UL 705 and cUL 705 listings (Power Ventilator/ZACT) when furnished with factory supplied motor.

TCN-B

Tubular Centrifugal
Inline Fan
Heavy Duty
Belt Drive

Description: Fan shall be duct mounted, belt driven tubular centrifugal inline.

Certifications: Fan shall be listed by Underwriters Laboratories (UL 705 and UL listed for Canada, (cUL 705). Fan shall bear the AMCA Certified Ratings Seal for Sound and Air Performance.

Construction: Fan shall be of welded and bolted construction utilizing corrosion resistant fasteners. Housing shall be minimum 12 gauge Lorenized® steel with integral inlet and outlet flanges. The fan housing shall include an inspection door, oriented 180O from the motor, that provides access to the fan for cleaning or inspection. Adjustable motor plate shall utilize threaded studs for positive belt tensioning. Extended lube lines shall be furnished for lubrication of fan bearings. Mounting brackets shall be welded to the outer housing to accommodate universal mounting feet for vertical or horizontal installation. Unit shall bear an engraved aluminum nameplate and shall be shipped in ISTA Certified Transit Tested Packaging.

Wheel: Wheel shall be steel centrifugal backward inclined, non-overloading flatblade type. Blades shall be continuously welded to the backplate and deep spun inlet shroud. Wheel hub shall be keyed and securely attached to the fan shaft. Wheel inlet shall overlap a one piece aerodynamically efficient aluminum inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Coating: All steel fan components shall be Lorenized® with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Motor: Motor shall be Nema design B with class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure

Bearings: Bearings shall be designed and tested specifically for use in air handling applications. Construction shall be regreasable ball or roller type in a cast iron pillowblock housing selected for a minimum L10 life in excess of 80,000 hours at maximum cataloged operating speed.

Belts and Drives: Belts shall be oil and heat reistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150 percent of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be model TCNH-B as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)

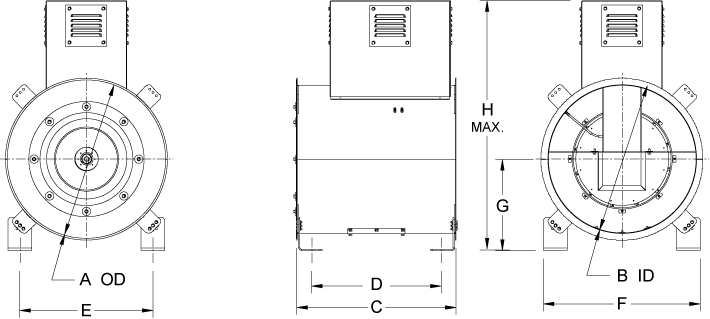

Dimension-drawing

Size A B C D**  E F G H Max. Motor Frame Approx. Ship Wt.*
60 19 16 22 18-3/8 14-7/8 17-7/8 10-7/8 30-5/8 145T 130
70 19 16 22 18-3/8 14-7/8 17-7/8 10-7/8 30-5/8 145T 130
80 19 16 22 18-3/8 14-7/8 17-7/8 10-7/8 30-5/8 145T 130
100 19 16 22 18-3/8 14-7/8 17-7/8 10-7/8 30-5/8 145T 130
120 21 18 23 19-3/8 16-1/4 19-1/4 10-7/8 32-3/16 184T 180
135 24 21 24-1/2 19-7/8 18-3/8 21-3/8 13-7/16 36-3/4 184T 225
150 27 24 27 22-1/2 20-1/2 23-1/2 14-1/2 43-1/4 184T 270
165 29 26 28-1/2 23 23 27 15-3/4 45-3/4 184T 320
180 31 28 31 26-3/8 24-3/8 28-3/8 16-7/16 47-3/4 213T 370
195 34 31 33-1/4 27-5/8 27-5/8 32-5/8 19-1/16 52-3/16 213T 430
210 37 34 34-1/2 29 30 35 20-1/4 55-1/8 213T 490
225 39 36 35-1/2 29-7/8 32-1/2 37-1/2 22-1/2 62-1/8 213T 550
245 43 40 41 35-3/8 35-3/8 40-3/8 24 65-7/8 215T 640
270 48 44 46-1/2 51-7/8 40 45-1/2 25-3/4 71-5/8 215T 760
300 52 48 48-1/4 53-5/8 42 47-1/2 27-3/4 75-7/8 254T 920
330 56 52 52 57-3/8 43 50-7/16 30-1/4 80-1/2 254T 1090
365 58 54 54 59-3/8 46-3/8 51-7/8 31-15/16 83-5/16 256T 1300
402 64 60 59-1/2 64-7/8 50-9/16 56-1/16 35 92-5/8 256T 1540
445 70 66 66 71-3/8 54-13/16 60-5/16 38-3/16 99-1/16 326T 1840
490 77 73 72-1/2 77-7/8 59-3/4 65-1/4 41-5/8 106-1/4 326T 2180
